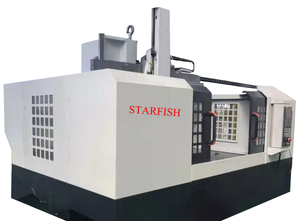

Introduction of Vertical Turning Milling Machining Center
The machine is suitable for high speed steel, hard alloy, all kinds of cast iron and ceramic cutting tools., rough and finish the parts which made of ferrous, non-ferrous metal and some non-metallic materials
On the condition of equipped with milling head, the machine can finish machining different processes workpeice after one time clamping, suitable for aviation, wind power, shipbuilding, power generation, machine tools, printing, mold and other manufacturing , semi-finishing and finishing, can also be used for rough processing. The equipment mainly has the following features:
Parameter of Vertical Turning Milling Machining Center
Parameter | Unit | LMCK250 | LMCK300 | LMCK350 | LMCK400 | LMCK500 | LMCK630 |
Max turning diameter | mm | 2500 | 3000 | 3500 | 4000 | 5000 | 6300 |
Max workpiece height | mm | 1600 | 1600 | 1600 | 2000 | 2500 | 3150 |
Max load capacity | Tons | 20 | 20 | 32 | 32 | 32/65 | 65/80 |
Worktable diameter | mm | 2250 | 2500 | 2800 | 3200 | 4500 | 5700 |
Worktable speed steps | two shift (stepless in shift) | two shift (stepless in shift) | wo shift (stepless in shift) | two shift (stepless in shift) | two shift (stepless in shift) | two shift (stepless in shift) | |
Worktable speed range | rpm | T：2.5~80 （100） M：0.001~1 | T：2.5~80 M：0.001~1 | T：2.5-63 M：0.001~1 | T：0.5-50 M：0.001-1 | T：0.5~40 M：0.001-1 | T：0.5~32 M：0.001~1 |
Column longitudinal travel (Y axis） | mm | Cuostmized | Cuostmized | Cuostmized | Cuostmized | Cuostmized | Cuostmized |
Tool post horizontal travel (X axis) | mm | -20~1400 | -20~1650 | -20~1850 | -20~2250 | -150~2765 | -150 ~ 3415 |
Milling tool post vertical travel (Z axis) | mm | 1000 | 1000 | 1000 | 1000 | 1300 | 1600 |
Ram section size | mm | 250x250 | 250x250 | 250x250 | 280x280 | 280x280 | 280x280 |
Milling spindle speed range | Rpm | 10-2400 | 10-2400 | 10-2400 | 10-2400 | 10-2400 | 10-2000 |
Milling spindle taper hole | BT50 | BT50 | BT50 | BT50 | BT50 | BT50 | |
Beam vertical travel （Waxis） | mm | 1250 | 1250 | 1250 | 1650 | 2150 | 2800 |
Working table division positioning accuracy （C axis） | ±8’’ | ±8’’ | ±8’’ | ±8’’ | ±8’’ | ±8’’ | |
Workbenter score repeat positioning accuracy | ±5’’ | ±5’’ | ±5’’ | ±5’’ | ±5’’ | ±5’’ | |
CNC system | Siemens828d | Siemens828d | Siemens828d | Siemens828d | Siemens828d | Siemens828d |
Feature of Vertical Turning Milling Machining Center
1. Adopt column move, cross beam move structure (fixed beam is optional)
2. The worktable adopts hydrostatic guideway and has indexing function . adopt Double servo motor master-slave control. when milling, through the double motor for electrical backlash elimination and control worktable indexing, which ensure high indexing accuracy.
3. The lathe bed adopt hydrostatic guideway synchronous drive by double servo motor, full closed loop control. (Y axis)
4. The milling ram slide horizontal move adopt hydrostatic guideway,driven by high precision ball screw ( gear-rack drive is optional), full closed loop control (X axis)
5. The milling ram vertical move adopt slide guideway (hyarostatic guideway is optional), full closed loop control (Z axis）
6. Achieve four axis linkage
